Description

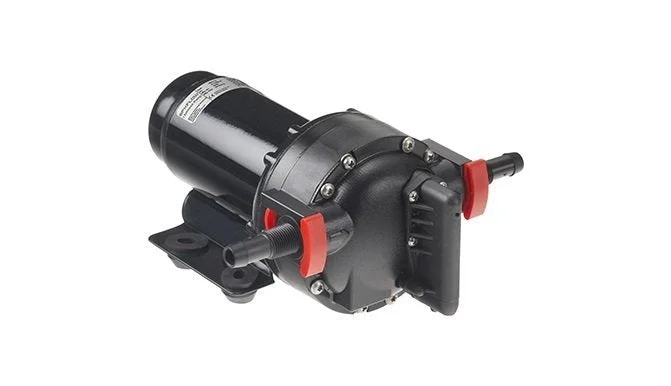

Quiet and pulsation-free even at low speeds, the new Aqua Jet five-chamber diaphragm pump provides the perfect water pressure solution for both small and medium sized leisure and commercial boats.
Quiet and pulsation-free even at low speeds, the new Aqua Jet five-chamber diaphragm pump provides the perfect water pressure solution for both small and medium sized leisure and commercial boats.
Features
- Whisper quiet operation
- Five-chamber construction
- Self-priming
- Easy, low cost maintenance
- Quick-connect hose or threaded connectors available
- Pressure switch standard
- Long service life
Aqua Jet WPS 5.2
| Pump body: | PP |
| Valve housing: | Polypropylene |
| Valves: | EPDM |
| Diaphragm: | Santoprene |
| Part No. | Capacity | Pressure Cut Off* | Fuse Size | Connection** | |
|---|---|---|---|---|---|
| 10-13406-07 | Aqua Jet WPS 5.2 12V | 20 l/min – 5.2 GPM | 2.8 bar, 41 psi | 15 A | ⅜“ BSP / hose ½“, ½“ BSP / hose ¾“ |
| 10-13406-107 | Aqua Jet WPS 5.2 12V | 20 l/min – 5.2 GPM | 2.8 bar, 41 psi | 15 A | ⅜“ NPT / hose ½“; ½“ NPT, ¾“ hose, ½“ NPT, ¾“ hose |
| 10-13406-08 | Aqua Jet WPS 5.2 24V | 20 l/min – 5.2 GPM | 2.8 bar, 41 psi | 8 A | ⅜“ BSP / hose ½“, ½“ BSP / hose ¾“ |
| 10-13406-108 | Aqua Jet WPS 5.2 24V | 20 l/min – 5.2 GPM | 2.8 bar, 41 psi | 8 A | ⅜“ NPT / hose ½“; ½“ NPT, ¾“ hose, ½“ NPT, ¾“ hose |
| * Cut off pressure 2.1 bar/30 psi and 1.4 bar/20 psi available on request |
